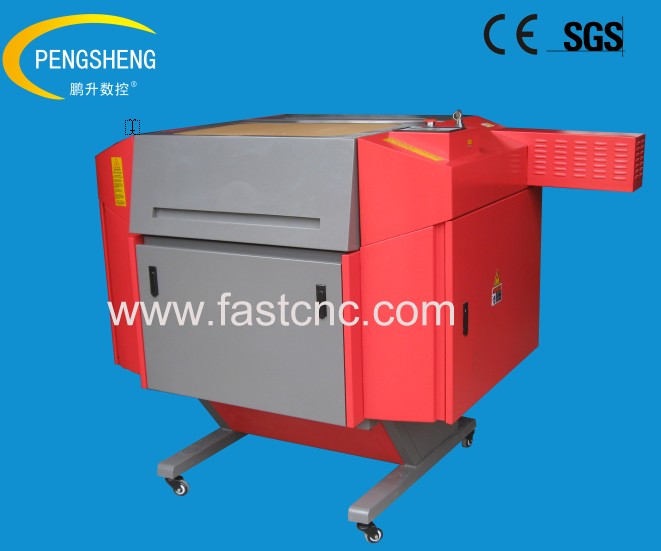

laser engraving machine PC-6090L with 100W laser tube




Feature:
1.Adopt the international advanced DSP control technology, it is the

pioneer to fast continuouslycurving-cut and shortcut processing pathway

optimizing function, accordingly increase greatly the decency.
 2.It automatically equalizes the diminishing of light during the whole

operating to ensure the same cuttingeffect ion different area. High-speed cutting control software and buffer function in high-speed movement

can improve production efficiency.
3.The up-to-date software provides the direct output of original pictures;

completely fit the graph foamssuch as CAD, CAM of CAD, and CorelDraw

software, to meet the practical design requirement of the end users.
 4.The advanced colors and the toms of the cutting can realize the one-time

output completely or partially.
5.It uses USB port to transmit data, equipped with large-capacity memory,

improving working efficiency greatly.



Technical Parameter:

TYPE

PC6090L

Table Sizemm

600*900

Laser Power

100W

Laser Type

CO2 sealed laser tube, water-cooled, 10.6um

Cooling type

Water-cooled

Engraving Scanning Speed

0-6000mm/min

Max Moving Speed

30000mm/min

Cutting speed

0-1000mm/min

Laser Output Control

1-100%software setting

Smallest Engraving

English 1.0mm*1.0mm

Highest Scanning Precision

2500DPI

Locating Precision

0.01mm

Supported File Format

DAT,PLT,BMP,DXF,AI,etc.

Compatible Software

TAJIMA,CORELDRAW,

PHOTOSHOP,AUTOCAD

Operating humidity

Temperature:0-45,Humidity:5%-95%

(without condensed water)

Optional parts:

Up&down table,auto focus system,

rotary device,ball scew transmission,

water chiller.



Applicable Industries:
Advertising industry:Double-colored board engraving,Organic glass

engraving and cutting,Label engraving,

Crystal cup engraving,Warranty signed engraving.
 Carved gifts and crafts industry:Wood,Bamboo Ivory ,Bone,Leather,Marble
Packing and printing industry:Rubbery board,Plastic board,Double-layered

board, Model cutting board
Leather clothing industry: Complex letters and pattern engraving,Cutting

on hypoderm,Synthetic leather,

Man-made leather,Cloth Architectural model industry: ABS board cutting,

Model cuttingProduction totem industry: Appliance signs,Anti-fake commodities

making.
Applicable Materials:
Wood,Bamboo,jade,marble,acrylic,crystal,leather,plastic,paper,rubber,

ceramic,glass and other non-metal materials.
